Properties/Construction/Description
Conductor
Stranded tinned copper
Insulation
PVC
Shield
Foil Shield Type: Aluminum/Mylar foil with tinned copper drain wire
Braid Shield Type: Aluminum/Mylar foil with tinned copper drain wire & braid tinned copper
Jacket
Color coded PVC
Applicable
Foil Shield Type: For sound broadcast,audio,instrumentation and computer cables for EIA RS-232 applications
Braid Shield Type: Computer cables for EIA RS-232 and CAD/CAM applications
Compliance Testing
Passes UL VW-1vertical flame test
Rated Temperature
80℃
Voltage Rating
300 Volt

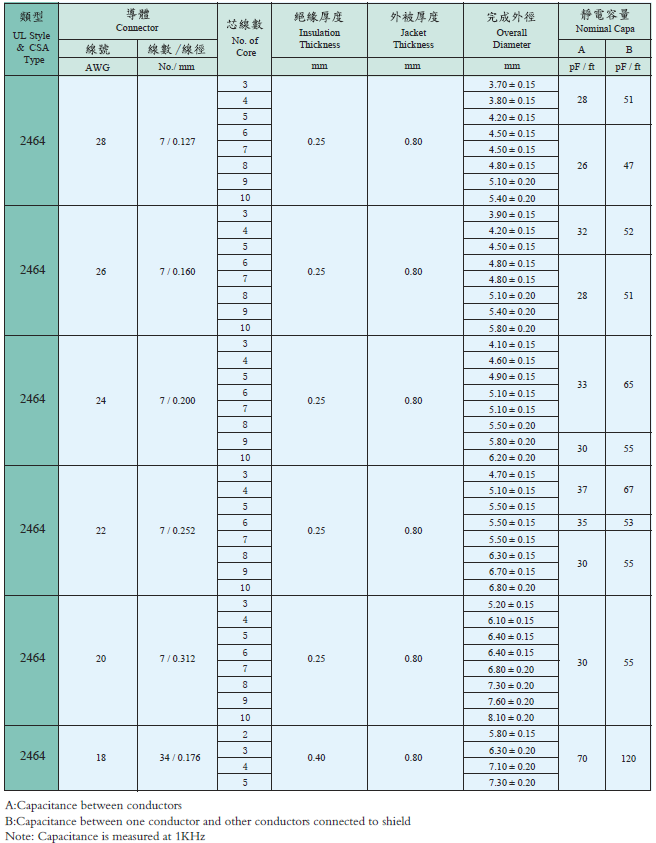

Foil Shield Type Specification

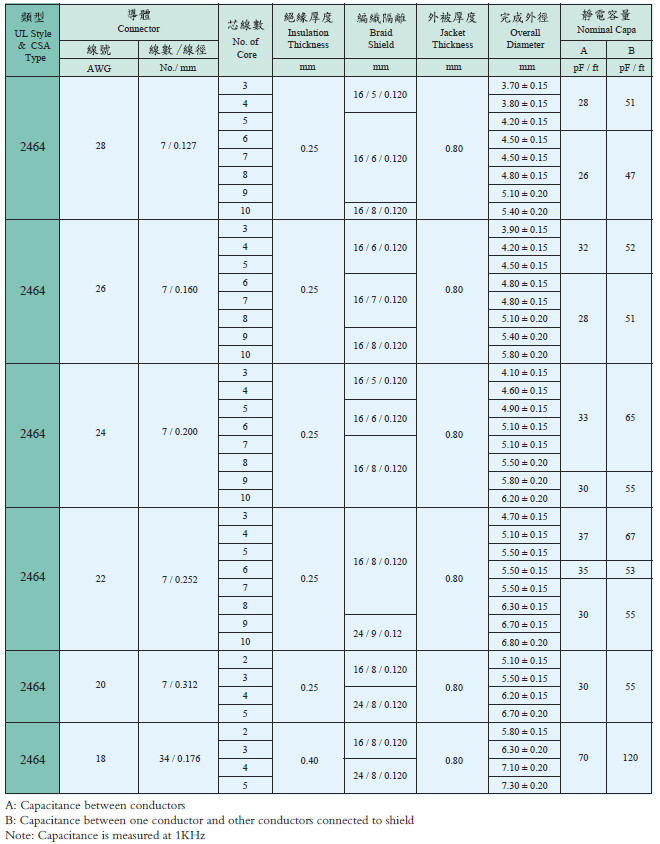

Braid Shield Type Specification
